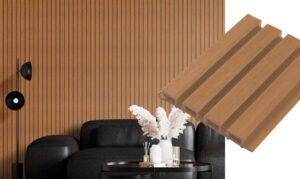

wpc wall panel waterproof GW22
Engineered for Lasting Beauty, Strength and Eco-Conscious Design.
wpc wall panel waterproof GW22
Product details
wpc wall panel waterproof are redefining modern architectural surfaces by harmonizing the organic appeal of natural wood with the durability of polymer science. Our wpc wall panel waterproof, precision-sized at 172mm (W) × 18mm (H) × 3000mm (L), deliver exceptional performance in diverse environments. With a water absorption rate of less than 0.5%, these panels are completely impervious to moisture, rendering them perfect for high-humidity applications such as bathrooms, kitchens, spa zones, and balconies.
- Model: GW22
- Type: wpc wall panel waterproof

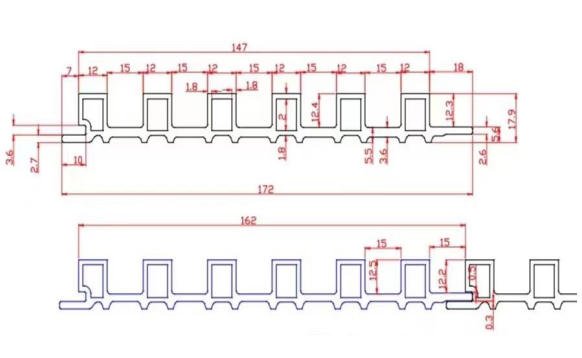

- Spec(W*H*L):172mm (W) × 18mm (H) × 3000mm (L)
Description
Aesthetically, the panels emulate the tactile grain and warmth of timber, available in a range of matte wood-look finishes that suit minimalist and classic settings alike. The surface is UV-stabilized to retain over 92% of its original color after 10,000 hours of accelerated weathering testing, ensuring long-term visual consistency even under direct sunlight.
Structurally, the high-density composition (1.25–1.30 g/cm³) prevents warping, splitting, and decay. The inclusion of impact modifiers enhances toughness, yielding a product with a flexural strength of 28–32 MPa and a modulus of elasticity of 2800–3200 MPa.
Installation is streamlined through a interlocking clip system, reducing installation time by up to 40% compared to traditional cladding. The lightweight nature (approx. 3.8 kg/m²) allows direct mounting over existing substrates, minimizing structural reinforcement.
Environmentally, our panels are comprised of 60% recycled wood fiber and HDPE plastics. They are 100% recyclable, CARB and FSC-certified, and free from formaldehyde or heavy metals. Fire resistance (Class B1 / BS476-6) and anti-termite properties further enhance their safety profile.

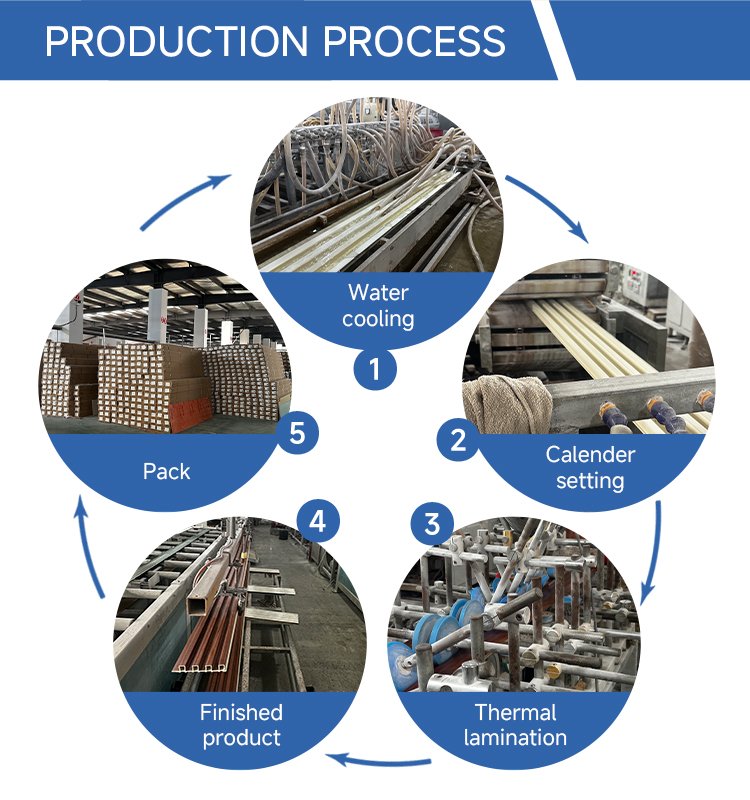

Wall Panel Production Process
Our manufacturing employs co-extrusion technology that blends post-industrial wood flour and polymers with green compatibilizers. The mixture is heated to 165–175°C and extruded through dual-stage vacuum calibrators to ensure dimensional stability (±0.15mm tolerance). Each batch is tested for density, moisture resistance, and mechanical strength. We incorporate ceramic-based anti-UV agents and antimicrobial additives during compounding, resulting in a panel that offers less than 3% linear thermal expansion and a operational temperature range of -40°C to 80°C. All products pass third-party certifications including SGS and CE marking.
Installation
Designed for glue-on or concealed clip mounting. No specialized skills needed. One person can install 30–40m² per day, reducing labor costs by 30%.
Company Introduction
As an industry pioneer with 12 years of expertise, we specialize in manufacturing cutting-edge WPC building solutions. Operating from a 35,000㎡ production facility equipped with 18 automated extrusion lines, we serve clients across 40+ countries. Our dedication to innovation, sustainability, and stringent ISO 9001 quality protocols has established us as a preferred supplier for architects, developers, and contractors worldwide.
Customization Services & Samples
We offer comprehensive customization in dimensions (lengths from 1000–6000mm), thickness (5–25mm), color, texture, and surface embossing. With Pantone-based color matching and digital printing capabilities, we replicate any wood species or abstract pattern.
Sample kits containing 6–8 popular finishes are available upon request. Global sample dispatch occurs within 2–3 working days via express courier.
For project-specific support, we provide technical drawings (DWG/PDF), BIM objects, installation videos, and onsite training. Volume orders (over 500m²) qualify for customized logistics planning and tiered pricing.
Get Sample
Get a Quote
Submit your project specifications—quantity, finish, dimensions, and destination—to receive a detailed quotation within 12 hours. We offer FOB, CIF, or DAP terms with bulk discounts starting at 1,000m².
