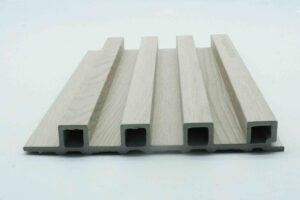

Wall panel wpc gW70

Elevate Surfaces with WPC Wall Panels

Where Sustainable Innovation Harmonizes with Architectural Refinement

• Model: GW70
• Type: Wall panel wpc

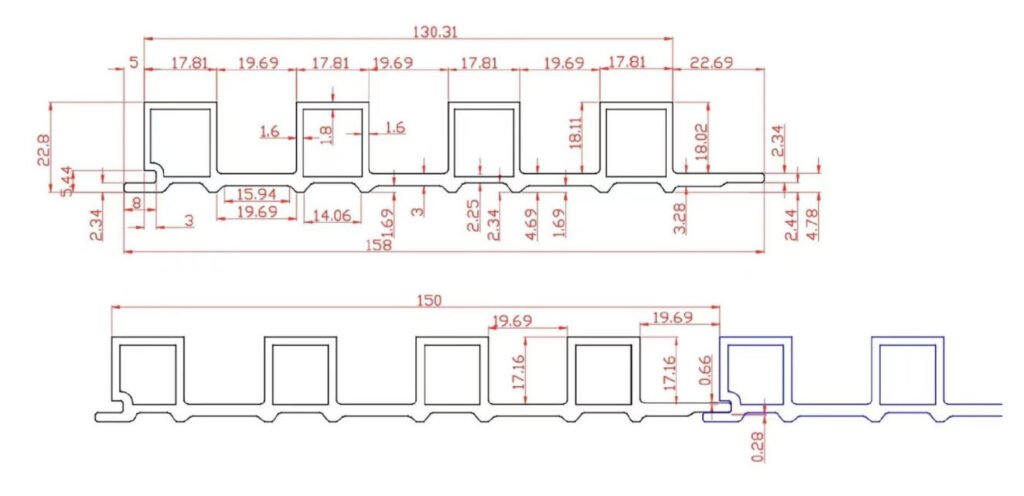

• Spec(W*H*L):158mm*23mm*3000mm
• Material: Wood-Plastic Composite

Revolutionizing Surface Design

GW70 Wall panel wpc redefines spatial narratives through molecularly engineered WPC technology. Beyond conventional wall coverings, it orchestrates a symphony of organic texture and industrial precision—transforming sterile surfaces into tactile experiences while championing planetary health.

Universal Application Intelligence

Boundaryless Integration

• Biophilic Interiors: Infuse lobbies, wellness spaces, and residential retreats with nature-calibrated aesthetics
• Climate-Defiant Exteriors: Salt fog/UV resistant cladding for coastal and arid architectures
• Fluid Transition Zones: Effortless indoor-outdoor continuity for terraces and transitional spaces

Engineered Resilience Matrix

Performance Beyond Timber

• HydroShield Core™: 0% water absorption eliminates mold, warping, and freeze-thaw damage
• ThermalGuard Stability: Withstands -40°C to 80°C without expansion compromise
• SwiftLock™ Installation: Interlocking tongue-groove system achieves 45㎡/hour installation efficiency

Design Alchemy

Unconstrained Visual Language

• 72 Surface Narratives: Petrified oak, volcanic basalt, oxidized metal patinas
• Dynamic Format Freedom: Vertical, horizontal, or diagonal mounting for kinetic facades
• Seamless Invisibility: Magnetic clip system creates jointless monolithic planes

Regenerative Technology

Carbon-Positive Footprint

• 78% Post-Consumer Regeneration: Recycled plastics/agricultural fiber hybrid matrix
• Photocatalytic Coating: Actively reduces airborne pollutants (ISO 22197-1 certified)
• Endless Reincarnation Cycle: 100% reclaimable at product lifespan terminus (35+ years)

Validated Excellence

Precision-Engineered Trust

• Molecular Bonding: Nano-fused wood-polymer interface exceeds EN 15534 standards
• Extreme Environment Testing: 15,000+ hour xenon-arc exposure validation (ISO 4892-2)
• Acoustic Enhancement: 28dB sound reduction index (per ASTM E90)

Color Universe

1,800+ on-demand finishes with proprietary ChromaDepth™ technology. Custom spectral matching to RAL/NCS/Pantone libraries within 72 hours.

→ Check more design

QY-106-PM48

QY-163-NG01

QY-107-PM49

QY-108-PM50

QY-94-PM36

QY-93-PM35

QY-58-PB39

QY-124-SY03

Wall Panel Wpc Video Show

Wall Panel Wpc Core Production Flow:

1. Raw Material Preparation & Mixing:
   • Wood flour/wood fibers (recycled wood or agricultural waste) are dried to strictly control moisture content.
   • Plastic resin (primarily recycled PE, PP, or PVC, etc.) and additives (such as coupling agents, lubricants, stabilizers, colorants, UV inhibitors, flame retardants, etc.) are precisely weighed according to the formulation.
   • All raw materials are fed into a high-speed mixer for thorough and uniform pre-mixing.
2. Extrusion Molding:
   • The blended material is fed into the hopper of a conical twin-screw extruder.
   • Under the action of screw conveying, shearing, and external heating, the material melts and plasticizes within the barrel, forming a uniform viscous melt.
   • The high-temperature, high-pressure melt is forced through a specially designed grille profile die. The shape of the die directly determines the final product’s grille structure (e.g., louvered, lattice, etc.).
   • The extruded hot, pliable continuous WPC profile emerging from the die has a cross-section matching the designed grille pattern.
3. Cooling & Calibration:
   • The extruded hot profile immediately enters a calibration and cooling unit (typically a vacuum calibration tank or a set of cooling calibration sleeves).
   • Through the combined action of vacuum suction and water spray cooling, the profile is rapidly cooled, solidified, and precisely shaped into the required grille form and dimensions. This step is crucial for ensuring dimensional accuracy and surface finish.
4. Haul-off & Cutting:
   • The cooled and calibrated continuous profile is pulled at a constant speed by a haul-off machine, ensuring stable continuous production.
   • Upon reaching the set length, an automatic cutting saw (or flying saw) cuts the continuous profile into wall panels of specified lengths.
5. Surface Treatment (Optional, but common for wall panels):
   • Online Embossing: Before full cooling/solidification, an embossing roller imparts wood grain, stone texture, or other patterns onto the profile surface for enhanced texture and slip resistance.
   • Laminating: After cooling/calibration, laminating equipment applies a decorative or protective PVC film or other laminate to the panel surface.
   • Spraying/UV Coating: The panel surface is sprayed or coated with a UV-protective layer to enhance weather resistance, stain resistance, and aesthetics.
6. Inspection & Packaging:
   • Finished products undergo quality inspection for dimensions, appearance, color, strength, etc.
   • Qualified products are stacked, bundled, or boxed.
   • Labels (containing product information, specifications, production date, etc.) are affixed, and products are prepared for warehousing or shipment.

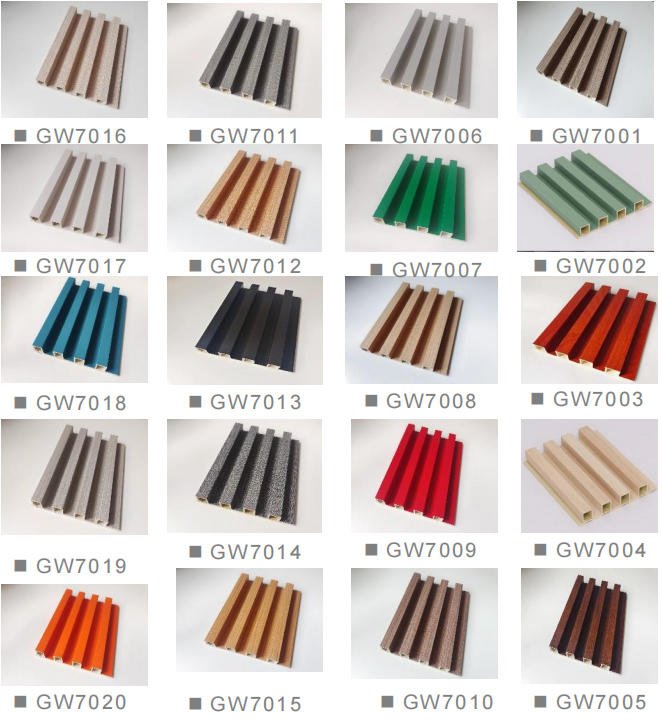

Wall Panel Wpc Surface Design

1500+ ready-made color/finish options across textures (wood grain, stone, solid, metallic).

Can’t find your ideal match? We support custom color/formula development (provide Pantone/RAL codes or physical samples).

QY-179-NG17

QY-178-NG16

QY-173-NG11

QY-171-NG09

QY-177-NG15

QY-169-NG07

QY-174-NG12

QY-109-PM51

QY-104-PM46

QY-106-PM48

QY-108-PM50

QY-163-NG01

QY-103-PM45

QY-96-PM38

QY-91-PM33

QY-90-PM32

Verify colors/textures risk-free: Request physical samples (free sample + shipping cost)

Customized sample delivery time 3-5 days
